Transformation (PCA)

Several transformation methods are available in the EnMAP-Box. You can find them in the Processing Toolbox under EnMAP-Box ‣ Transformation. The usual way to apply these methods is to use a Fit … algorithm first and then apply it to an image with Transform raster layer.

This recipe demonstrates the basic workflow of applying transformations using a principle component analysis (Fit PCA) and the example data.

See also

You can find all the available transformation algorithms here.

1. Open the test dataset

2. In the processing toolbox go to EnMAP-Box ‣ Transformation ‣ Fit PCA

   • Specify enmap_potsdam.tif under Raster

   • Under Output Transformer specify an output file path and click Run

3. Now open EnMAP-Box ‣ Transformation ‣ Transform raster layer

   • Select enmap_potsdam.tif as input Raster

   • Under Transformer click … and select the output .pkl file from the Fit PCA algorithm

   • Specify an output filepath for the transformed raster under Transformation and click Run

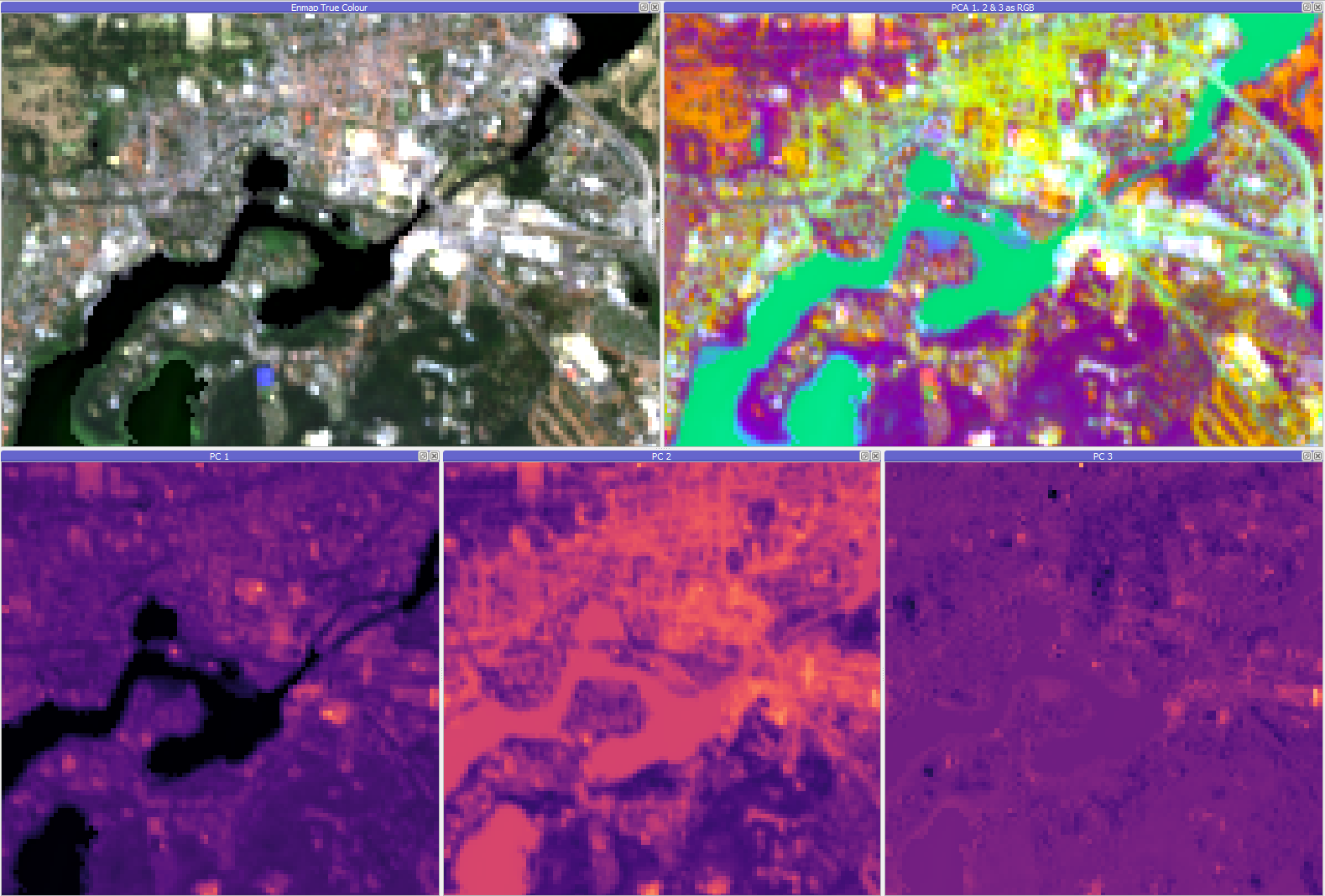

   Fig. 13 Results of a PCA transformation: input image on the upper left, RGB representation of the first 3 components on the upper right and singleband pseudocolor visualisation of the same components on the bottom.
