Part I: Basics

1. Hello World

Creating a GUI with Qt is simple. If we start from scratch, we first need to create a QApplication instance:

from PyQt5.QtWidgets import QApplication, QWidget

app = QApplication([])

This initializes the Qt framework, allows us to draw widgets on screen and to react on user inputs. Now we can create our first widget and show it:

widget = QWidget()
widget.setWindowTitle('Hello World')
widget.show()

app.exec_()

Fig. 53 Example 1: An empty Hello World widget.

Tip

QWidget is the base class of all Qt widgets. QWidgets offer several customizations, e.g.:

widget.setFixedSize(150, 200) # change width and height
widget.setVisible(False) # hide the widget

Please note the app._exec_() line. It tells our QApplication instance to enter the event loop. This loop regularly checks if there are any user inputs, e.g. mouse movements or keyboard events, and react to.

Replace app._exec_() with print('Application finished') and see what happens. The widget might show up for some milliseconds, but disappears as the main application terminates immediately.

Note

• A QApplication already exists if we start from the QGIS python console or when our code is called from an EnMAP-Box instance.

• If we start our own python shell, e.g. out of PyCharm, we (i) need to initialize a QApplication and (ii) enter it’s event loop.

• A QApplication needs to be instantiated only once. The Qt documentation writes:

  For any GUI application using Qt, there is precisely one QApplication object, no matter whether the application has 0, 1, 2 or more windows at any given time. For non-QWidget based Qt applications, use QGuiApplication instead, as it does not depend on the QtWidgets library.

Summary

You now learned to:

• initialize a QApplication and start the GUI event loop

• create QWidgets and show them on screen

Complete code

def test_example1_hello_world(self):

    from PyQt5.QtWidgets import QApplication, QWidget

    app = QApplication([])

    widget = QWidget()
    widget.setWindowTitle('Hello World')
    widget.show()

    app.exec_()
    print('Application finished')

2. Hello Real World

This tutorial addresses GIS and remote sensing people, so let’s use the QGIS API to visualize real world spatial data.

Similar to the Qt framework and its QApplication, we need to initialize the QGIS API first by creating a QgsApplication. To simplify a couple issues, we use the EnMAP-Box API to do so:

from enmapbox.testing import start_app
app = start_app()

Note

• QgsApplication inherits |QApplication|, so it’s not required to create a separated one

• enmapbox.testing.start_app(...) creates a QgsApplication instance and emulates several aspects of a real QGIS Desktop Application. E.g. it loads different raster drivers, initializes the QGIS Processing Framework and create a QGIS Desktop Application mockup.

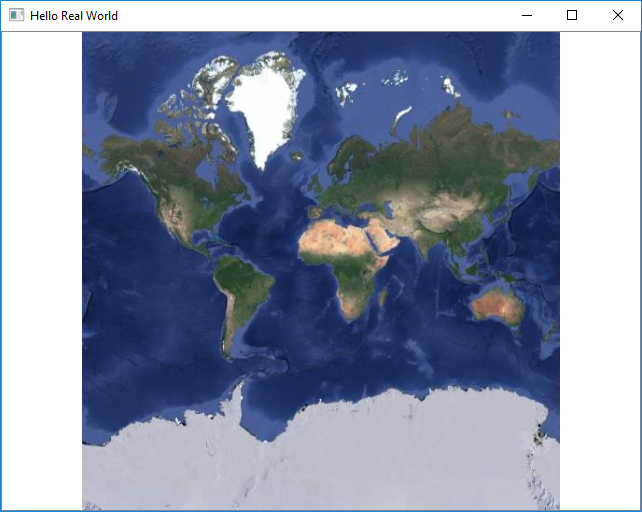

Now we can create a QgsRasterLayer that shows a web map service with the google satellite map:

from qgis.core import QgsRasterLayer
uri = r'crs=EPSG:3857&format&type=xyz&url=https://mt1.google.com/vt/lyrs%3Ds%26x%3D%7Bx%7D%26y%3D%7By%7D%26z%3D%7Bz%7D&zmax=19&zmin=0'
layer = QgsRasterLayer(uri, 'google maps', 'wms')
assert layer.isValid()

The QgsMapCanvas visualizes QgsMapLayers, like our QgsRasterLayer. Before map layers can be rendered, they need to be stored in a QgsMapLayerStore. This will be done if we add them to the current QgsProject instance:

from qgis.gui import QgsMapCanvas
from qgis.core import QgsProject

QgsProject.instance().addMapLayer(layer)

canvas = QgsMapCanvas()
canvas.setWindowTitle('Hello Real World')
canvas.setLayers([layer])

Now we focus the map canvas to the spatial extent of our raster layer and start the application loop:

canvas.setExtent(layer.extent())
canvas.setDestinationCrs(layer.crs())
canvas.show()
app.exec_()

Of course we can visualize local files like from the EnMAP-Box testdata as well:

import enmapboxtestdata
uri = enmapboxtestdata.enmap
layer = QgsRasterLayer(uri)

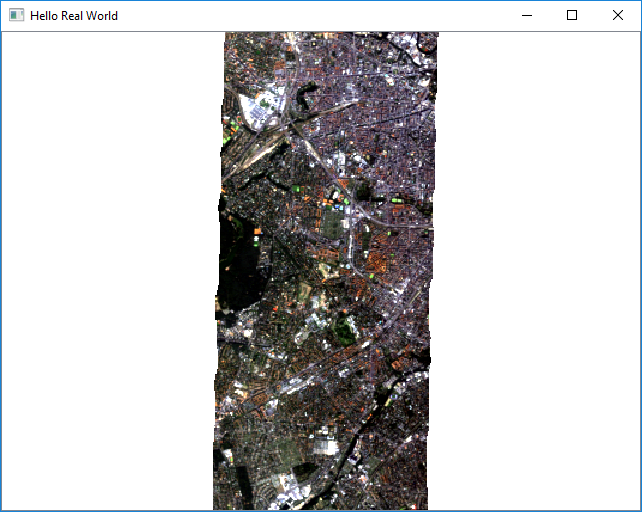

Fig. 54 Example 2b: QgsMapCanvas visualizing the EnMAP example image.

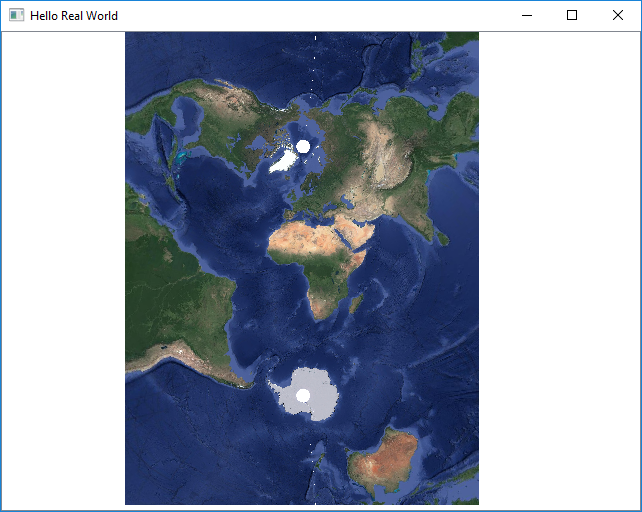

The canvas CRS can be set to any CRS of choice. This becomes impressive when reprojecting the global google satellite map into a non-global UTM Zone, like that for 32N(EPSG code 32632):

from qgis.core import QgsCoordinateReferenceSystem
canvas.setDestinationCrs(QgsCoordinateReferenceSystem('EPSG:32632'))

Summary

You now can:

• open raster data sources as QgsRasterLayer

• visualize QgsMapLayers on a QgsMapCanvas

• create a QgsCoordinateReferenceSystem for any EPSG code of interest

• specify a map canvas CRS

Full source code

from enmapbox.testing import start_app

app = start_app()

assert isinstance(app, QApplication)
assert isinstance(app, QgsApplication)

uri = r'crs=EPSG:3857&format&type=xyz&url=https://mt1.google.com/vt/lyrs%3Ds%26x%3D%7Bx%7D%26y%3D%7By%7D%26z%3D%7Bz%7D&zmax=19&zmin=0'
layer = QgsRasterLayer(uri, 'google maps', 'wms')

import enmapboxtestdata
layer = QgsRasterLayer(enmapboxtestdata.enmap)

QgsProject.instance().addMapLayer(layer)

assert layer.isValid()


from qgis.gui import QgsMapCanvas
canvas = QgsMapCanvas()
canvas.setWindowTitle('Hello Real World')
canvas.setLayers([layer])
canvas.setExtent(layer.extent())
canvas.setDestinationCrs(layer.crs())
canvas.show()

app.exec_()

3. Create new widgets

Widgets can be small like a single button, but also complex forms which allow to enter various inputs. Technically, a new widget is created by:

1. inheriting QWidget or one of its child classes, e.g. QDialog

2. modification of the frontend, e.g. adding other widgets or changing visual properties

3. modification of the backend modification, e.g. by adding methods to validate user inputs

Let’s create a simple widget that contains:

• a map to show spatial data

• a text box to show multi-line textual data

• a label to show other information

• a button to reset the map

Create the main widget

First, we create a new class that inherits from QWidget. Because we will need a couple of other widgets as well, we also import the Qt and QGIS widget libraries:

from qgis.core import *
from qgis.gui import *
from qgis.PyQt.QtWidgets import *
from qgis.PyQt.QtGui import *
from qgis.PyQt.QtCore import *

class ExampleWidget(QWidget):

def __init__(self, parent=None):
    super(ExampleWidget, self).__init__(parent)
    self.setWindowTitle('Example Widget')
    self.resize(QSize(300,200))

super(ExampleWidget, self).__init__(parent) calls the constructor of QWidget and initializes all properties and functions available for QWidgets. To visualize this widget call:

app = start_app()

myWidget = ExampleWidget()
myWidget.show()

app.exec_()

Add child widgets

Now we add other child widgets to the parent widget:

self.textBox = QTextEdit()
self.mapCanvas = QgsMapCanvas()
self.label = QLabel('Label info')
self.button = QPushButton('Press me')

Qt Layout classes control the widget position and resizing behaviour. In this case we want a nested layout that orders widgets in two rows of a major vertical QVBoxLayout. Each row is realized with a QHBoxLayout

self.setLayout(QVBoxLayout())

self.topLayout = QHBoxLayout()
self.topLayout.addWidget(self.textBox)
self.topLayout.addWidget(self.mapCanvas)

self.bottomLayout = QHBoxLayout()
self.bottomLayout.addWidget(self.label)
self.bottomLayout.addWidget(self.button)

self.layout().addLayout(self.topLayout)
self.layout().addLayout(self.bottomLayout)

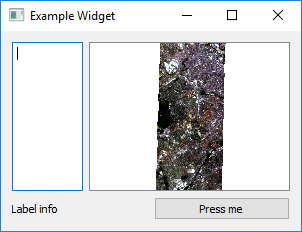

Finally let’s add some raster data to the map canvas and start our widget:

from enmapboxtestdata import enmap
layer = QgsRasterLayer(enmap)
QgsProject.instance().addMapLayer(layer)
self.mapCanvas.setLayers([layer])
self.mapCanvas.setDestinationCrs(layer.crs())
self.mapCanvas.setExtent(self.mapCanvas.fullExtent())

Summary

Now you can:

• create your own widget

• order widgets in vertical, horizontal and nested layouts

Full code

ExampleWidget definition

class ExampleWidget(QWidget):

    def __init__(self, parent=None):
        super(ExampleWidget, self).__init__(parent)

        self.setWindowTitle('Example Widget')
        self.resize(QSize(300, 200))

        self.textBox = QTextEdit()
        self.mapCanvas = QgsMapCanvas()
        self.label = QLabel('Label info')
        self.button = QPushButton('Press me')

        self.setLayout(QVBoxLayout())

        self.topLayout = QHBoxLayout()
        self.topLayout.addWidget(self.textBox)
        self.topLayout.addWidget(self.mapCanvas)

        self.bottomLayout = QHBoxLayout()
        self.bottomLayout.addWidget(self.label)
        self.bottomLayout.addWidget(self.button)

        self.layout().addLayout(self.topLayout)
        self.layout().addLayout(self.bottomLayout)

        from enmapboxtestdata import enmap
        layer = QgsRasterLayer(enmap)
        QgsProject.instance().addMapLayer(layer)
        self.mapCanvas.setLayers([layer])
        self.mapCanvas.setDestinationCrs(layer.crs())
        self.mapCanvas.setExtent(self.mapCanvas.fullExtent())

Calling code

app = start_app()

myWidget = ExampleWidget()
myWidget.show()

app.exec_()

4. Signals and Slots

Graphical User Interfaces react on various types of user interactions and inputs. For example

• a click on a Start button that starts a time-demanding process

• a click on a Cancel button that interrupts a time-demanding process

• a tooltip that is shown when the mouse cursor stops over a widget

• a text box that changes its background color into red when its input becomes invalid

With Qt, such interactions are often realized with Signals and Slots . All widgets can emit signals to inform other widgets or objects about changes and events. In Qt terminology, functions that are triggered by a signal are called slots.

Connect Signals

Let’s enhance our ExampleWidget to react on the button’s .clicked() signal. We define the slot function onButtonClicked to add some text to the text box and update the label:

def onButtonClicked(self, *args):
    text = self.textBox.toPlainText()
    text = text + '\nclicked'
    self.textBox.setText(text)

    from datetime import datetime
    self.label.setText('Last click {}'.format(datetime.now().time()))

Then we modify the ExampleWidget’s constructor (__init__) and connect the clicked signal with the onButtonClicked slot:

self.button.clicked.connect(self.onButtonClicked)

In addition we like to reset the map canvas to the full layer extent, e.g. after a user has changed the spatial extent by zooming or panning. We like to keep our source-code clear and short. As the reset operation can be defined in one-line, we use a lambda function as signal-slot:

self.button.clicked.connect(lambda : self.mapCanvas.setExtent(self.mapCanvas.fullExtent()))

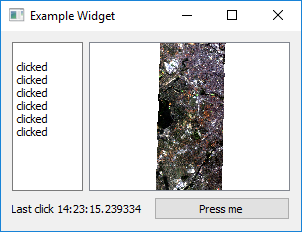

Re-start the widget, zoom or pan within the map canvas and click the button:

Create Signals

QObjects like our widget can define and emit their own signals. This might become useful if other widgets need to be informed about changes. Signals are defined like class (not instance) variables:

class ExampleWidget(...)

    sigButtonClicked = pyqtSignal()

    def __init__(...):
        ...

and triggered by and object instance with the emit function:

self.button.clicked.connect(lambda: self.sigButtonClicked.emit())

Overload Signals

You can overload a signal’s signature to emit different sets of arguments:

class ExampleWidget(...)

    sigButtonClicked = pyqtSignal([], [str])

    def __init__(...):
        ...

In this case the signal sigButtonClicked can be emitted without argument or providing an extra string with more information:

self.button.clicked.connect(lambda: self.sigButtonClicked.emit())
self.button.clicked.connect(lambda: self.sigButtonClicked[str].emit('Button  clicked'))

Similarly, you can connect a slot with a signal that provides specific arguments. If you would like to receive the sigButtonClicked definition that also sends some textual information, connect to it like in this example:

myWidget = ExampleWidget()
myWidget.sigButtonClicked[str].connect(lambda text : print('Received: "{}"'.format(text)))
myWidget.show()

Clicking the Examplewidgets button will now print Received: "Button clicked" to the console

Summary

You now can:

• use signals and connect them to slots

• define lambda functions and use them as singnal-slots

• create and emit your own signals

• overload signals with different sets of arguments and connect slots to them

5. Context Menus

Context menus inform users about possible settings and operations. To show a context menu, we need to implement the virtual contextMenuEvent method and execute a QMenu

class ContextMenuExample(QWidget):

    def __init__(self, *args):
        super(ContextMenuExample, self).__init__(*args)
        self.resize(QSize(450, 100))
        self.setWindowTitle('ContextMenuExample')

    def contextMenuEvent(self, event:QContextMenuEvent):
        menu = QMenu()

        action1 = menu.addAction('Print "A"')
        action1.triggered.connect(lambda: print('A'))

        action2 = menu.addAction('Print "B"')
        action2.triggered.connect(lambda: print('B'))

        menu.exec_(event.globalPos())

app = QApplication([])
w = ContextMenuExample()
w.show()
app.exec_()

As you see, QActions objects are used to describe menu items. The triggered signal is fired on mouse-click and can be used to call slot functions. More complex QMenus should be structured with separators and child menus:

menu.addSeparator()
subMenu = menu.addMenu('More actions..')
action3 = menu.addAction('Print "C.1"')
action3.triggered.connect(lambda: print('C.1'))

action4 = menu.addAction('Print "C.2"')
action4.triggered.connect(lambda: print('C.2'))

QAction objects can be made checkable. This is useful to present On/Off switches, e.g. to set internal options. For this we define two boolean variables in the class constructor:

class ContextMenuExample(QWidget):

    def __init__(self, *args):
        super(ContextMenuExample, self).__init__(*args)
        self.resize(QSize(450, 100))
        self.setWindowTitle('ContextMenuExample')


        self.option1 = True
        self.option2 = False

and enhance contextMenuEvent(..):

subMenu = menu.addMenu('Options...')

opt1 = subMenu.addAction('Option 1')
opt1.setCheckable(True)
opt1.setChecked(self.option1 == True)
opt1.toggled.connect(lambda b: setattr(self, "option1", b))

opt2 = subMenu.addAction('Option 2')
opt2.setCheckable(True)
opt2.setChecked(self.option2 == True)
opt2.toggled.connect(lambda b: setattr(self, "option2", b))

Summary

You now learned how to:

• create and show context menus

• create a QAction and use its triggered and toggled signals

• overwrite a virtual method / function

6. Qt Designer

The more widgets your GUI contains, the more you have to specify details like widget positions, layout behaviour, button names etc. Tools like the Qt Designer and Qt Creator allow you to design a GUI frontend by drag ‘n drop, to better focus on what you want to visualize and to separate front-end from background logic.

Draw a Frontend

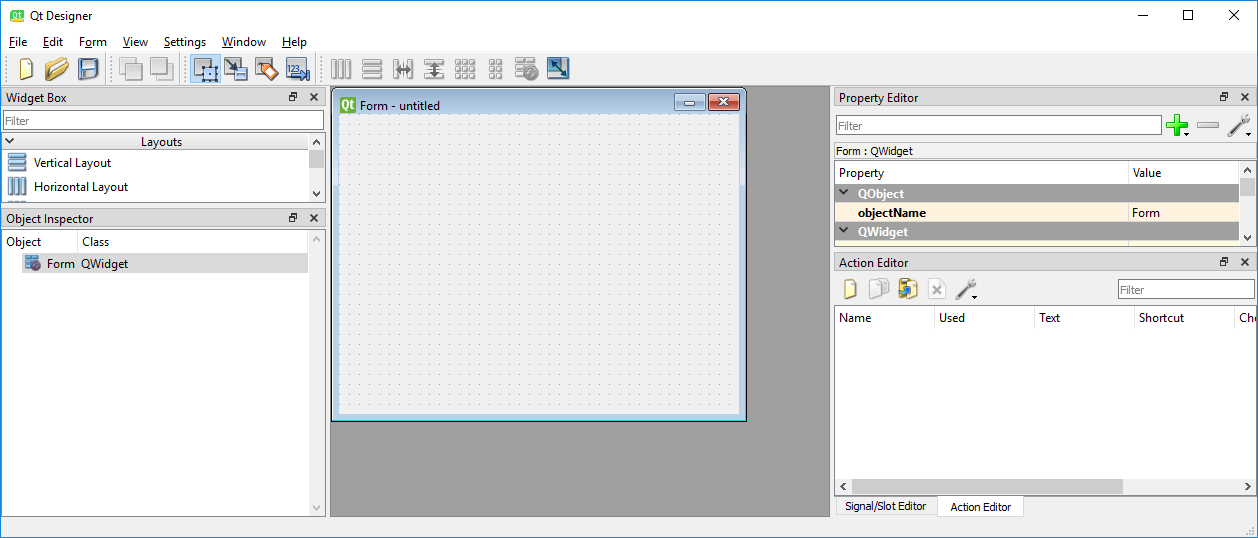

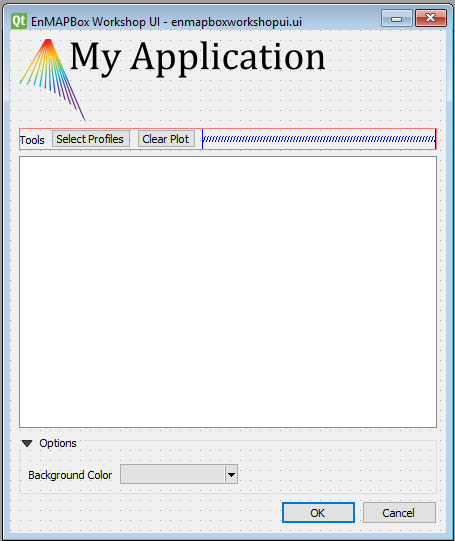

Start the Qt Designer (or Qt Creator), click on File > New.. and create a new from (exampleform.ui) based on Widget.

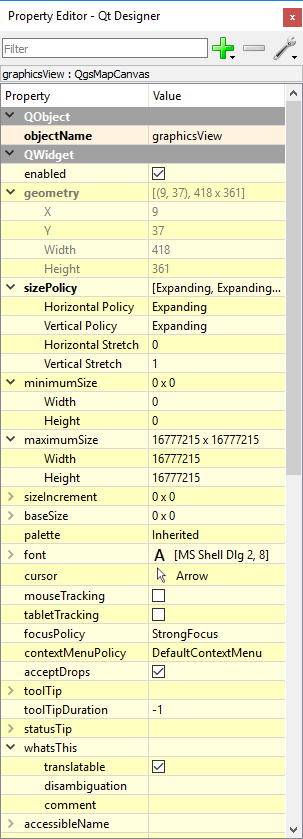

Now take at least 10 minutes to discover the Qt Designer:

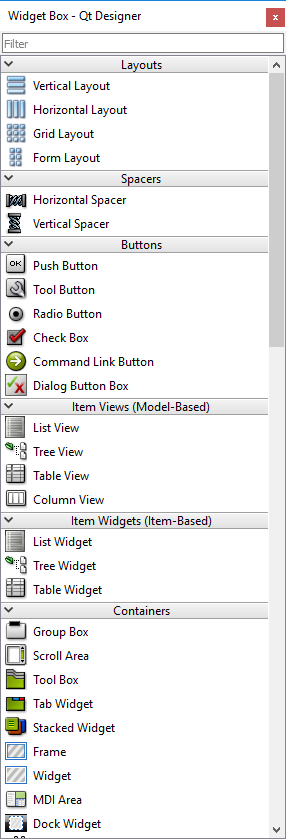

• Drag and drop widgets from Widget Box to your empty form

• Add layouts from the Widget Box to your form and add some widgets

• Explore and modify widget properties with the Property Editor

• Set tooltips, change minimum and maximum sizes

• Visualize previews via View > Preview (or CTRL + P)

Build a complex UI

Now we want to create a new widget called EnMAPBoxWorkshopUI, which later on can be used to:

• start collecting spectral profiles from a map that is opened in the EnMAP-Box

• receive these spectral profiles from the EnMAP-Box and draw them in a plot

For this we first create a new form that derives from QWidget and save it as enmapboxworkshop.ui:

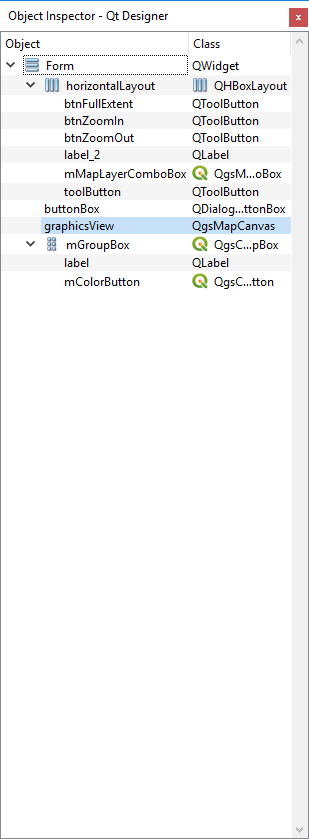

Fig. 55 exampleform_reference.ui opened in Qt Designer

• the the parent widget’s window title to EnMAPBox Workshop UI

• create a QLabel with object name applicationLogo

• set the image programming_tutorial2/tut2_part1_basics/application_logo.svg as background pixmap for the application logo

• create a QHBoxLayout that contains:

  • a QLabel Map Tools

  • a QToolButton with object name btnSelectProfiles. It will be used to activate the profile selection

  • a QToolButton with object name btnClear. It will be used to clear the plot window

• add a QGraphicsView with object name plotWidget

• add a QgsCollapsibleGroupBox with title Options

• add a QLabel Background Color and add a QgsColorButton with object name btnBackgroundColor

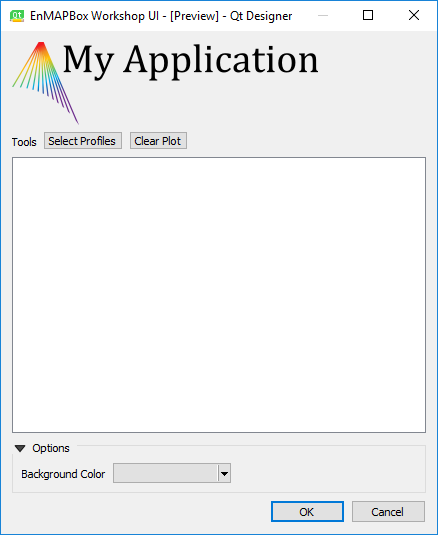

• use the preview (Ctrl+R) to check how your widgets look like, in particular when resizing it, or when you collapse or expand the group box

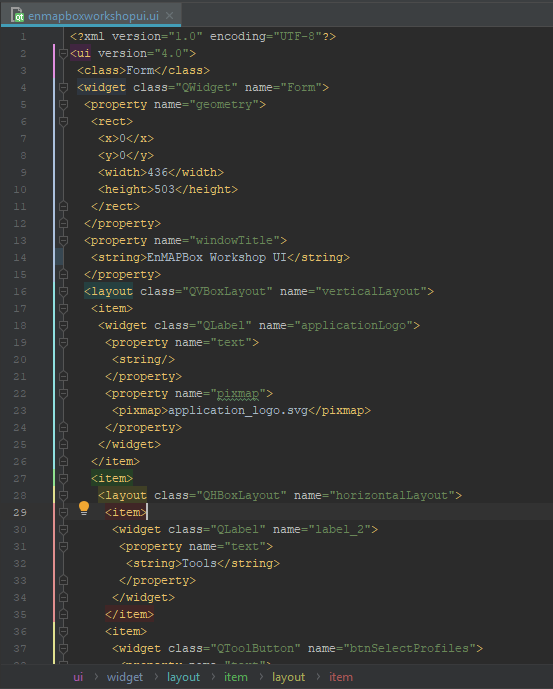

Save your last modification with (CTRL+S) and inspect in an text editor. As you see, the Qt Designer describes the entire frontend in an XML structure.

Write the backend

Before we can use our EnMAPBoxWorkshopUI widget from python, we need to write its backend. The backend loads the enmapboxworkshopui.ui and makes all Qt objects available that we have specified in the Qt Designer. It further specifies signals to communicate with other widgets, e.g. a sigSpectralProfileRequest which we will need to inform the EnMAP-Box if we want to collect Spectral Profiles.:

from enmapbox.gui.utils import loadUi
pathUi = os.path.join(os.path.dirname(__file__), 'enmapboxworkshopui.ui')

class EnMAPBoxWorkshopUI(QWidget):

    sigSpectralProfileRequest = pyqtSignal()

    def __init__(self, parent=None):
        super(EnMAPBoxWorkshopUI, self).__init__(parent)
        loadUi(path, self)

        assert isinstance(self.applicationLogo, QLabel)
        assert isinstance(self.btnSelectProfiles, QToolButton)
        assert isinstance(self.btnClear, QToolButton)
        assert isinstance(self.plotWidget, QGraphicsView)
        assert isinstance(self.btnBackgroundColor, QgsColorButton)

Tip

The function enmapbox.gui.utils.loadUi(...) enhances the loadui described in https://www.riverbankcomputing.com/static/Docs/PyQt5/designer.html by taking care on QGIS and Python specific issues.

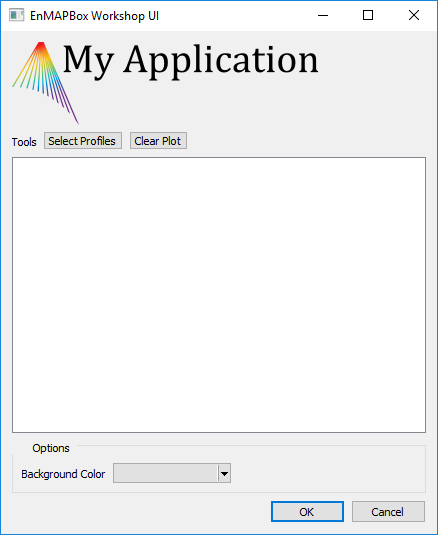

We can now open the EnMAPBoxWorkshopUI from python:

app = start_app()

w = EnMAPBoxWorkshopUI()
w.show()

app.exec_()

QGIS and EnMAP-Box Icons

There might be a tiny difference between the Qt Designer’s preview [Ctrl+R] and how the widget looks when started from Python.

In this case the missing QgsCollapsibleGroupBox icon has not been loaded into the Qt resource system. However, the icon is available:

• if we start our widget from the QGIS python, or

• if we load the missing resources manually

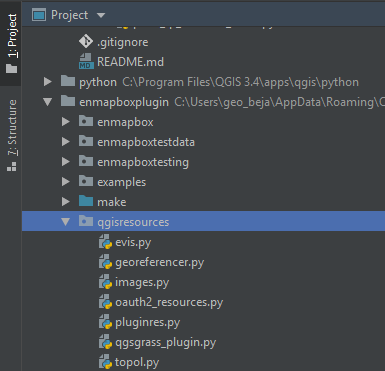

Long story short, download the qgsresources.zip and extract it into the enmapbox root folder:

The QGIS icons are available after initializing a QgsApplication with:

from enmapboxtesting import start_app
app = start_app()

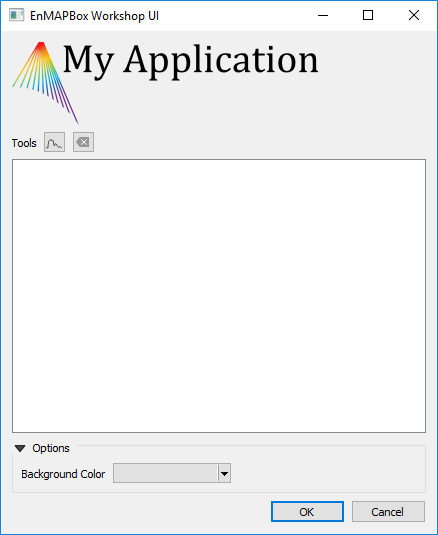

To show a QGIS icon, we just need to create a QIcon with the icon’s resource identifier:

self.btnSelectProfiles.setIcon(QIcon('://enmapbox/gui/ui/icons/spectralprofile.svg'))
self.btnClear.setIcon(QIcon(':/images/themes/default/mIconClearText.svg'))

Tip

Read 4. Discover Qt Resource Icons to visualize all icons that are available in a Qt environment.

Promote widgets

You might have realized that some widgets are missing in the widget box, e.g. the QgsMapCanvas that we have used in the first exercises.

So how can we design a GUI frontend with widgets unavailable in the widget box?

In this case we (i) use a widget as a placeholder that is available in the widget box and that (ii) our widget-of-interest inherits from.

In our EnMAPBoxWorkshopUI we like to plot spectral profiles for which we use a pyqtgraph.PlotWidget. This widget is not available in the widget box, but it inherits from QGraphicsView. Therefore we can promote our QGraphicView (object name plotWidget) into a pyqtgraph.PlotWidget:

#. Open your `enmapboxworkshop.ui`, select the `plotWidget`, right-mouse context menu and open *Promoted Widgets*.

1. Define a New Promoted Class as

   Base class name	QGraphicsView
   Promoted class name	PlotWidget
   Header file	pyqtgraph.PlotWidget

   Click to Add and close the dialog

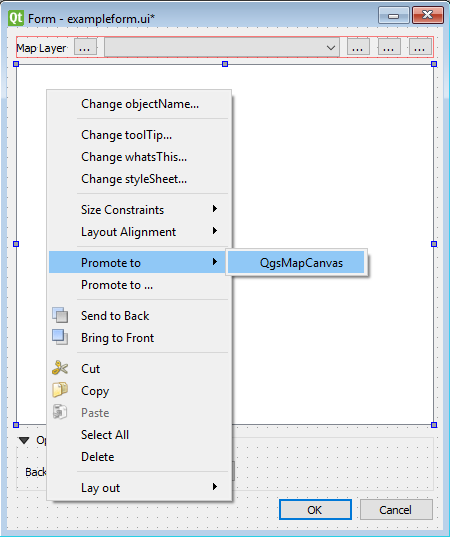

2. Now select the plotWidget QGraphicsView object, open its context menu > Promote to.. > PlotWidget



3. Save your changes (Ctrl+S).

4. Verify that our plotWidget indeed is a pyqtgraph.PlotWidget instance (and not just a QGraphicsView) with an additional assert:

   from pyqtgraph import PlotWidget
   assert isinstance(self.plotWidget, PlotWidget)

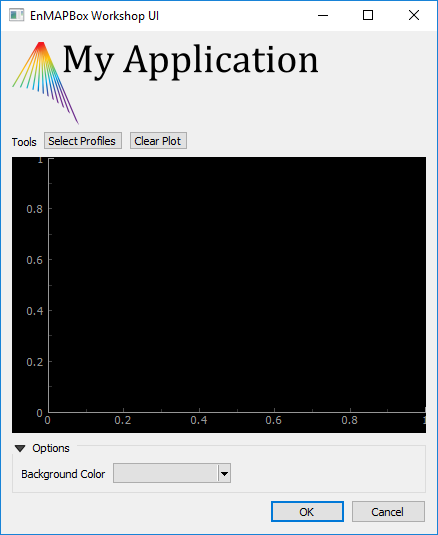

5. Re-start the EnMAPBoxWorkshopUI to see how the plotWidget has changed into a pyqtgraph.PlotWidget



Tip

Each widgets inherits from QWidget, so you can always use a QWidget in the Qt Designer and promote it into a more specialized widget class.

React on User Input

The backend specifies how widgets react on user input. In our case we would like to allow users to set the plot widget’s background color:

self.btnBackgroundColor.setColor(self.plotWidget.backgroundBrush().color())
self.btnBackgroundColor.colorChanged.connect(self.plotWidget.setBackgroundBrush)

Restart the widget and change the background color, e.g. into orange.

Summary

You now can:

• use the Qt Designer to create a GUI frontend

• promote basic Qt / QGIS widgets into any other derived widgets

• write a backend that connects widgets and responses to user inputs
