FAQ & Troubleshooting

Bug report & feedback

Note

Your feedback is more than welcome! In case you encounter any problems with the EnMAP-Box or have suggestions of any kind for improving it (or this documentation), please let us know!

Please report issues (bugs, suggestions etc.) via our issue tracker.

Contact

E-Mail: enmapbox@enmap.org

Newsletter: Subscribe to the EnMAP mailing list to be informed about new EnMAP-Box releases and other EnMAP related news at www.enmap.org/contact


FAQ

This is a list of Frequently Asked Questions about the EnMAP-Box. Feel free to suggest new entries!

  • How to cite the EnMAP-Box?

    Please cite the EnMAP-Box as:

    EnMAP-Box Developers (2019): EnMAP-Box 3 - A QGIS Plugin to process and visualize
    hyperspectral remote sensing data. https://enmap-box.readthedocs.io


    BibTeX:

    @misc{enmapbox2019,
    author = {EnMAP-Box Developers},
    title = {EnMAP-Box 3 - A QGIS Plugin to process and visualize hyperspectral remote sensing data},
    year = 2019,
    url = {https://enmap-box.readthedocs.io}
    }


    For the general idea behind the EnMAP-Box please refer to:

    van der Linden, S., Rabe, A., Held, M., Jakimow, B., Leitão, P., Okujeni, A., Schwieder, M.,
    Suess, S., Hostert, P., 2015. The EnMAP-Box—A Toolbox and Application Programming Interface
    for EnMAP Data Processing. Remote Sensing 7,
    11249–11266. 10.3390/rs70911249.

  • How to install QGIS without administrative rights?

    Yes, it is possible to install and run QGIS (and the EnMAP-Box) without admin rights. You just need to download and install Conda, where you can install QGIS as described here.

  • Installation: no module named pip

    In case you run into problems during installation because pip is not available in your python environment (error message C:/.../python3.exe: No module named pip or similar), follow these steps (Windows):

    Start the OSGeo4W installer from the OSGeo4W Shell by calling

    setup

    ../_images/shell_setup.png

    which will open the OSGeo4W Setup dialog.

    Now navigate through the first pages of the dialog, by selecting the following settings:

    • Advanced Installation Next
    • Installation from Internet Next
    • default OSGeo4W root directory Next
    • local temp directory Next
    • direct connection Next
    • Select downloadsite http://download.osgeo.ogr Next

    Then use the textbox to filter, select and install the following packages (see video below for help):

    • python3-pip
    • python3-setuptools

    Click on the osgeoinstaller symbol once, which should usually change the Skip setting to installing the most recent version. Only AFTER having selected both packages, click Next.

    Demonstration of package selection in the Setup

    Click Finish when the installation is done.


  • Python package installation with requirements.txt does not work

    Usually, all dependencies can be installed with one line:

    python3 -m pip install -r https://bitbucket.org/hu-geomatics/enmap-box/raw/develop/requirements.txt


    If the method above did not work for some reason, try installing the packages listed in the requirements.txt line by line, e.g. python3 -m pip install numpy and so on.

    requirements.txt
    # this file lists packages that are required to run the EnMAP-Box
    # depending on your system it might be necessary to install required package with package installers others than pip
    # see https://pip.pypa.io/en/stable/reference/pip_install/#requirements-file-format
    # see https://www.python.org/dev/peps/pep-0440/#version-specifiers
    ###### Requirements ######

    # should be already part of a standard QGIS installation
    numpy>=1.15
    matplotlib>=3.0
    pip>=20.0
    dataclasses # ; python_version < '3.7'
    scipy>=1.1
    # PyQt5-sip  # commented out; caused "Unable to import PyQt5-sip" issue, see #718

    # required by parts of EnMAP-Box Core
    scikit-learn>=0.24
    astropy # required for convolution
    PyOpenGL # required by ImageCube app
    xgboost # required by XGBoost classifier/regressor, see #960
    lightgbm # required by LightGBM classifier/regressor, see #960
    catboost # required by CatBoost classifier/regressor, see #960

    # required by parts of EnMAP-Box Applications
    numba # <=0.47 ; platform_system != "Linux" # required by EnSoMAP, causes problems on Linux (miniconda)
    netCDF4 # required by ONNS
    enpt-enmapboxapp # required by EnPT


  • Installation: error ensomap / numba / TypeError jitdebug

    EnSoMAP requires Numba, a JIT compiler that translates python code into fast machine code. Unfortunately, Numba is not part of a standard QGIS installation. Installing it afterwards can be tricky, in particular on the standard Windows and macOS QGIS installations. If you want to use EnSoMAP and numba, we therefore recommend to use a QGIS that was installed with Conda instead.

    1. Install conda and create a conda environment with QGIS as described here.

    2. Install Numba

      (qgis_stable) $>conda install numba --channel=conda-forge

    3. Start the conda QGIS by:

      (qgis_stable) $>qgis

    4. If not already done, install the EnMAP-Box to your Conda-QGIS with the QGIS Plugin Manager.


  • Image Cube tool missing qtopengl / Missing OpenGL / QtOpenGL packages

    On some systems we experiences problems related to a missing OpenGL support (e.g Issue #299)

    1. Ensure that you have installed OpenGL drivers that support your graphic card
    2. Ensure that PyOpenGL is installed:: $ python3 -m pip install PyOpenGL

    On Linux, it might be necessary to install the Python bindings for QtOpenGL in order to start the Image Cube tool.

    sudo apt-get install python3-pyqt5.qtopengl


  • Error loading the plugin

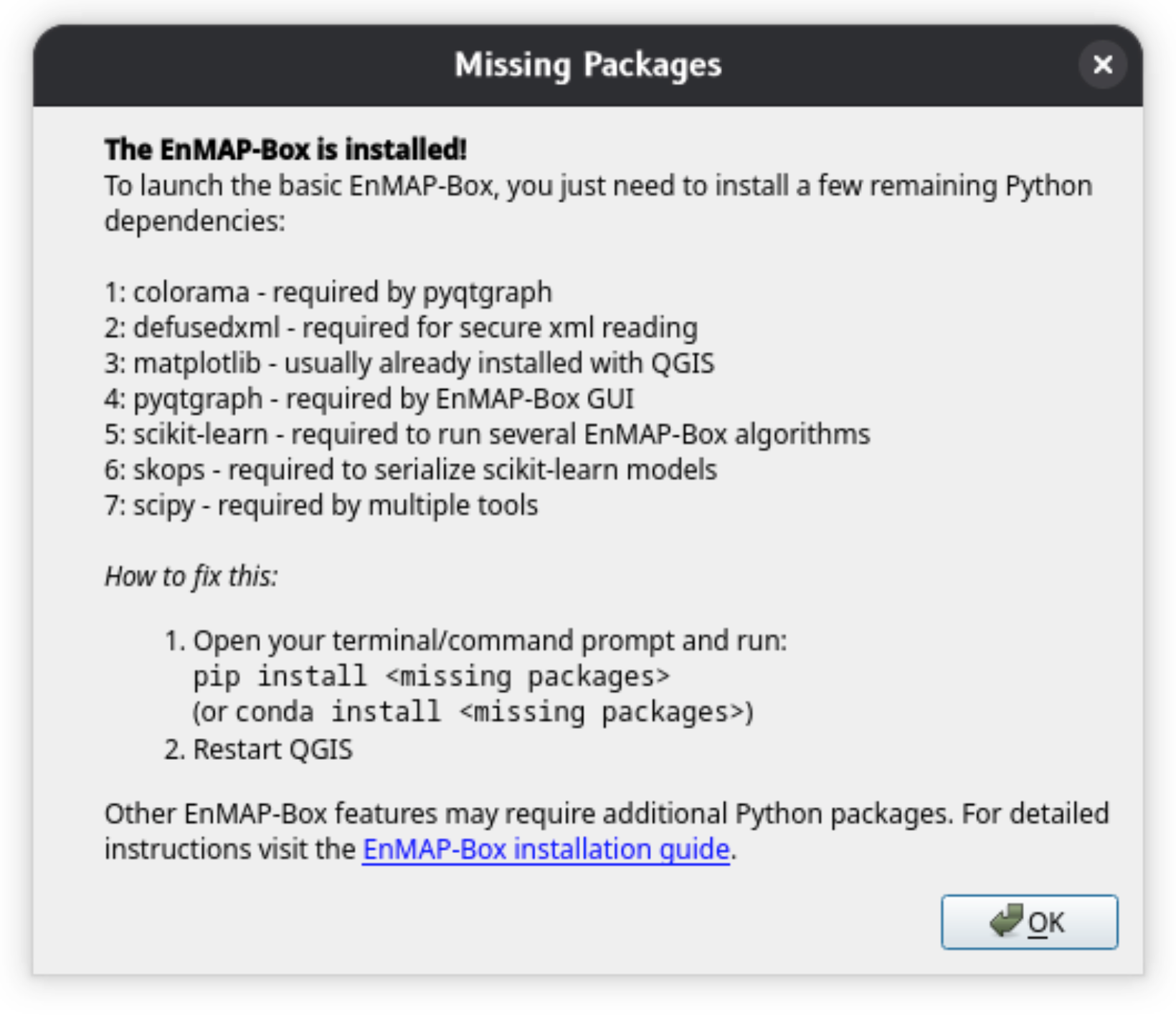

    In case of missing requirements you should see an error message like this

    ../_images/missing_package_warning.png

    In that case please make sure you installed all missing packages, in this example pyqtgraph and sklearn are missing.


  • Exception: Unable to find full path for “dockpanel.ui”. Make its directory known to UI_DIRECTORIES

    It’s likely that an update of the EnMAP-Box plugin failed to remove a previous version properly. The following workaround might help:

    1. Navigate into the active QGIS profile folder. It can be opened via Settings > User Profiles > Open Active Profile Folder
    2. Close QGIS. This is necessary to avoid any file handles on files or folders of the EnMAP-Box plugin.
    3. Delete the EnMAP-Box plugin folder manually, e.g. default/python/plugins/enmapboxplugin if the active QGIS profile is ‘default’.

    4. Restart QGIS and install the most-recent EnMAP-Box version This description was taken from https://bitbucket.org/hu-geomatics/enmap-box/issues/304/exception-unable-to-find-full-path-for


Known Issues

Here is a list of known issues, that aren’t fixed easily, and/or only affect a specific version of QGIS or operating system:

https://bitbucket.org/hu-geomatics/enmap-box/issues?component=known+issue&status=on+hold
